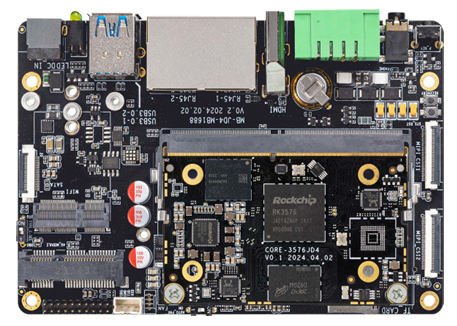

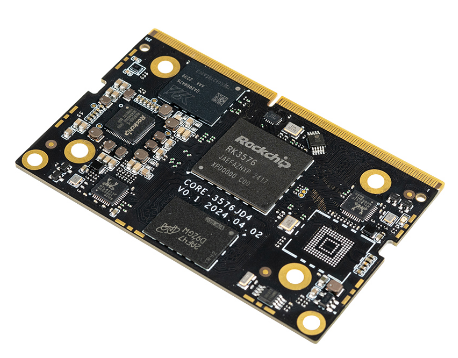

Компания Firefly выпустила линейку продуктов на базе одного из последних решений Rockchip – системы на кристалле RK3576

Процессор

Rockchip RK3576 Octa-core 64-bit processor (4×A72 + 4×A53) with a maximum frequency of 2.2GHz

Оперативная память

LPDDR4/LPDDR4x (4GB/8GB optional)

Хранение данных

eMMC (16GB/32GB/64GB/128GB/256GB optional)

UFS2.0 (Optional)

1 х M.2 (SATA3.0/ PCIe NVMe SSD expansion, supporting 2242/2260/2280)

Видео интерфейсы

2 х MIPI CSI DPHY (1 х 4 lanes or 2 х 2 lanes)

1 х MIPI CSI D/C PHY (MIPI DPHY (1х4 lanes or 2х2 lanes) or MIPI CPHY (3 lanes) )

1 х HDMI2.1(4K@120fps)

Аудио интерфейсы

1 х 3.5mm Audio jack, supporting MIC recording, CTIA standard

Ethernet

Ethernet: 2 х RJ45 (1000Mbps)

WiFi: WiFi/BT module expansion available via M.2 E-KEY (2230) interface, supporting 2.4GHz/5GHz dual-band WiFi 6 (802.11a/b/g/n/ac/ax) and BT5.2

4G: 4G LTE expansion available via Mini PCIe (shared with 5G module)

5G: 5G expansion available via M.2 (shared with 4G module)

Интерфейсы

2 х USB3.0, 1 х USB2.0

1 х Type-C (USB 2.0/DEBUG)

 1 х FAN (4Pin-1.25mm),

1 х SIM card

1 х dual-row pin header (2х10-20PIN-2.0mm): USB 2.0, SPI, 2хI2C, Line in, Line out, GPIO

1 х Phoenix connector (2х4Pin, 3.5mm pitch): 1 х RS485, 1 х RS232, 1 х CAN 2.0

Питание

DC 12V (5.5mm х 2.1mm, 12V~24V wide input voltage)

Max: 7.8W(12V/650mAh) Normal: 1.92W(12V/150mAh) Min: 0.54W(12V/45mAh)

Размеры

122.89mm х 85.04mm х 22.7mm

Диапазон рабочих температур

-20℃- 60℃

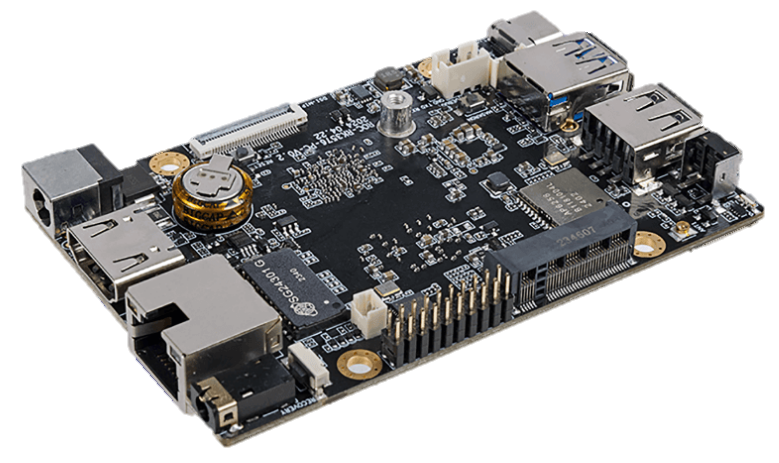

Процессор

Rockchip RK3576 Octa-core 64-bit processor (4×A72 + 4×A53) with a maximum frequency of 2.2GHz

Оперативная память

LPDDR4/LPDDR4x (4GB/8GB optional)

Хранение данных

eMMC (16GB/32GB/64GB/128GB/256GB optional)

UFS2.0 (Optional)

Интерфейсы

1 х M.2 (2242 PCIe NVMe/SATA SSD expansion ), 1 х TF card slot

1 х Gigabit Ethernet (1000 Mbps / RJ45), 2.4GHz/5GHz dual-band WiFi (802.11a/b/g/n/ac), Bluetooth 5.0

1 х MIPI CSI DPHY (30Pin-0.5mm, 1х4 lanes/2х2 lanes)

1 х HDMI2.1(4K@120fps),1 х DP1.4 (4K@120fps)、

1 х MIPI DSI DPHY（2560*1600@60fps，30Pin-0.5mm, 1х4 lanes）

1 х USB3.0, 1 х USB2.0

1 х Type-C (OTG/DP1.4), 1 х FAN (4Pin-1.25mm), 1 х Debug (3Pin-2mm),

1 х 3.5mm Audio jack (supporting MIC recording, CTIA standard), 1 х MIC (2Pin-1.25mm)

1 х double-row pin header (20Pin-2.0mm): USB 2.0, I2C, SPI, SARADC, UART, and LineOut

Питание

DC 12V (5.5mm * 2.1mm, 12V~24V wide input voltage) Normal: 1.2W(12V/100mA)，Max: 6W(12V/500mA)，Min: 0.096W(12V/8mA)

Размеры

93.00mm х 60.15mm х 12.49mm

Диапазон рабочих температур

-20℃- 60℃

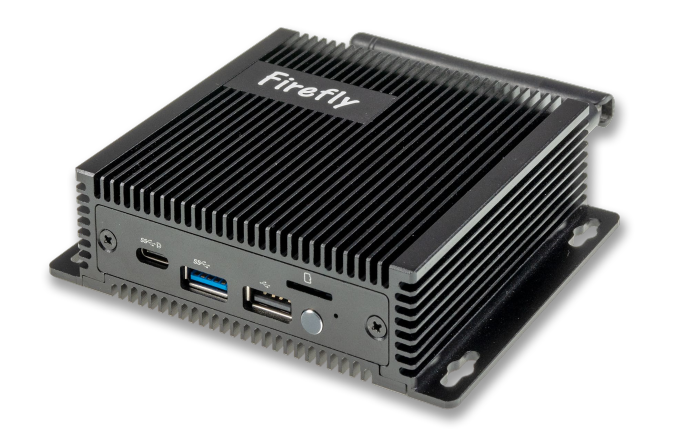

Процессор

Rockchip RK3576 Octa-core 64-bit processor (4×A72 + 4×A53) with a maximum frequency of 2.2GHz

Оперативная память

LPDDR4/LPDDR4x (4GB/8GB optional)

Хранение данных

eMMC (16GB/32GB/64GB/128GB/256GB optional)

UFS2.0 (Optional)

Интерфейсы

1 х M.2 (Scalable 2242 PCIe NVMe/SATA SSD) (Inside the Computer), 1 х TF Card Slot

1 х Gigabit Ethernet (1000Mbps/RJ45), 2.4GHz/5GHz Dual-band WiFi (802.11a/b/g/n/ac), Bluetooth 5.0

1 х HDMI2.1 (4K@120fps), 1 х DP1.4 (4K@120fps)

1 х USB3.0, 1 х USB2.0

1 х Type-C (OTG/DP1.4), 1 х 3.5mm Audio jack (Support MIC recording, American Standard CTIA)

Питание

DC 12V (5.5mm*2.1mm, 12V~24V wide voltage input)

Normal: 1.32W(12V/110mA), Max: 8.4W(12V/700mA), Min: 0.024W(12V/2mA)

Размеры

116.0mm х 105.2mm х 31.5mm

Диапазон рабочих температур

-20℃ - 60℃
